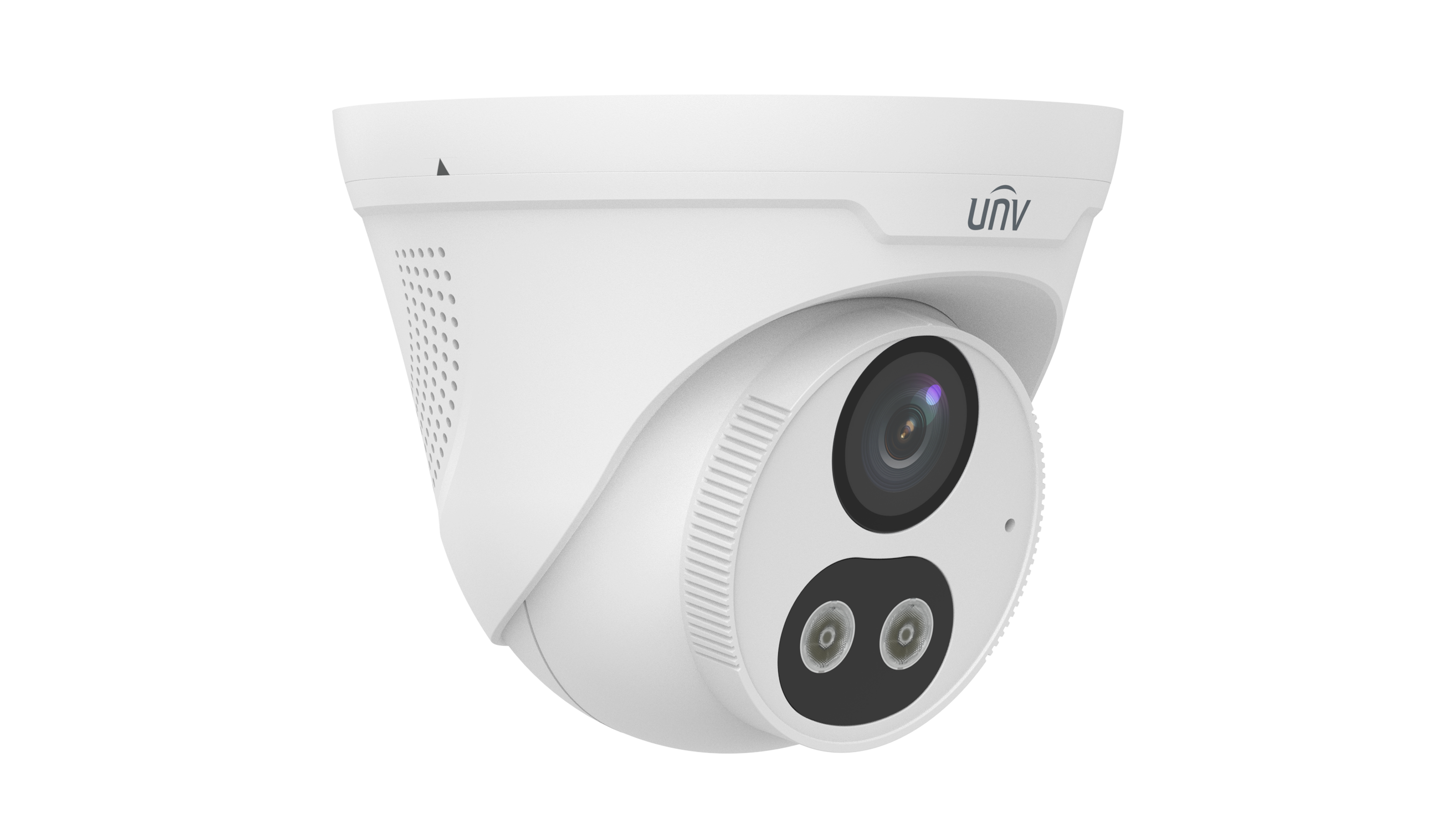

Күмбезді IP бейнекамера IPC3612LE-ADF28KC-DL

IPC3612LE-ADF28KC-DL: IPC3612LE-ADF40KC-DL

Camera

Max Resolution: 2 MP

Sensor: 1/2.8" CMOS

Min. Illumination: Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°

S/N: >52 dB

WDR: 120 dB

Lens

Focal Length: 2.8 mm · 4.0 mm

Iris Type: Fixed

Iris: F1.6

Field of View (H): 106.7° · 87.5°

Field of View (V): 57.1° · 46.3°

Field of View (D): 115.7° · 92.4°

DORI

DORI Distance (Lens): 2.8 mm · 4 mm

DORI Distance (Detect): 43.4 m (142.4 ft.) · 62.1 m (203.7 ft.)

DORI Distance (Observe): 17.4 m (57.1 ft.) · 24.8 m (81.4 ft.)

DORI Distance (Recognize): 8.7 m (28.5 ft.) · 12.4 m (40.7 ft.)

DORI Distance (Identify): 4.3 m (14.1 ft.) · 6.2 m (20.3 ft.)

Illuminator

Supplemental Light: Dual light

Illumination Distance (IR): 30 m (98.4 ft)

Illumination Distance (Warm Light): 30 m (98.4 ft)

Wavelength: 850 nm

Light On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920 1080), max. 30 fps; 720P (1280 720), max. 30 fps;

Sub Stream: 720P (1280 720), max. 30 fps; D1 (720 576), max. 30 fps; 640 360, max. 30 fps

Video Bit Rate: 128 Kbps to 6144 Kbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital defog

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)

General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: Support

Suppression: Support

Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB

Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T),

API, SDK

User/Host: Up to 32 users, 2 user levels: administrator and common user

Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: Support

WIFI: N/A

Network: 1 RJ45 10 M/100 M Base-TX Ethernet

Video Output: N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)

General

Power: DC 12 V 25%, PoE (IEEE 802.3af)

Power Consumption: Max. 8.0 W

Power Interface: 5.5 mm coaxial power plug

Dimensions: 118 mm 95 mm ( 4.6" 3.8") ( H)

Weight: 0.32 kg (0.71 lb)

Material: Metal + Plastic

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Surge Protection: 4 KV

Reset Button: Support

Web Client Language: 4 Languages: English, Russian, Spanish, Vietnamese
