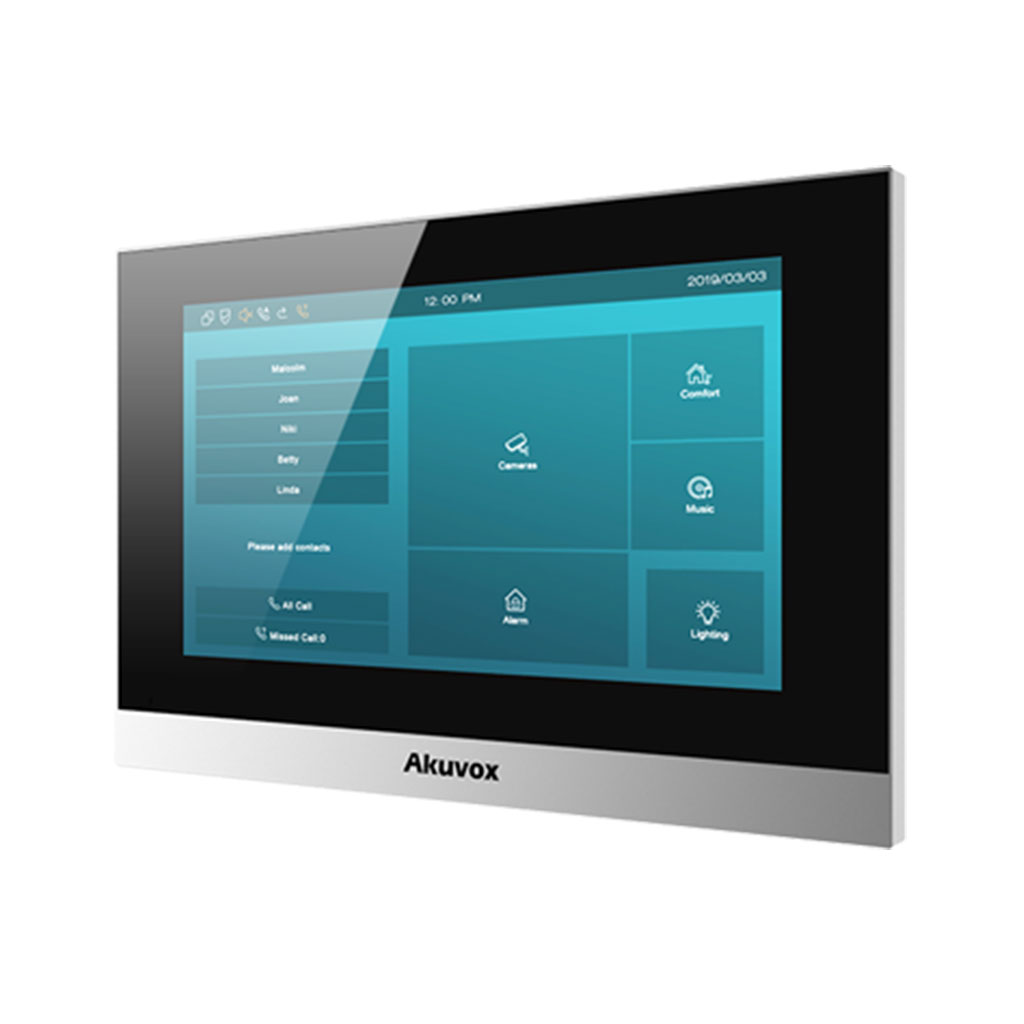

IP монитор (интерком-панель) C315S

At a Glance

Ultra-clear, stylish appearance

Thin profile and small footprint

7-inch capacitive touch screen with energy saving mode

Two-way audio communication with other units in the network

Complies with SIP standard for easy integration in every SIP capable PBXes

Powered by PoE or external source

Support US or European electrical wall box mounting

Physical & Power

Front panel: Plastic

RAM / ROM: 1GB / 8GB

Display: 7 Inch TFT LCD

Screen: 7 Inch capacitive touch screen

Wi-Fi: IEEE802.11b/g/n, @2.4GHz

RS485 port: Support

Relay out: 1

Bell in: 1

I/O: 8

Microphone: -58dB

Speaker: 4Ω / 2W

Ethernet ports: 2xRJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC connector (if not using PoE)

Installation: Wall-mounted & Desktop

Dimension: 200.2x132.2x27.2mm

Working Humidity: 10~90%

Working Temperature: -10°C ~ +45°C

Storage Temperature: -20°C ~ +70°C

Touch Screen Display

Display Mode: Normally white, Transmissive

LCD Size: 7inch (Diagonal)

Resolution: 1024x600

Contrast ratio: 800:1

Luminance: 270 cd/m2

Viewing Angle: 75° Left, 75° Right, 70° Upper, 75° Lower

Touch Screen: Projected capacitive

Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Automatic Gain Control

Video

Streaming formats: H.263 & H.264

Networking

Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)

Application Scenario

Villas

Apartment complexes

Home automation systems

Modern interiors
