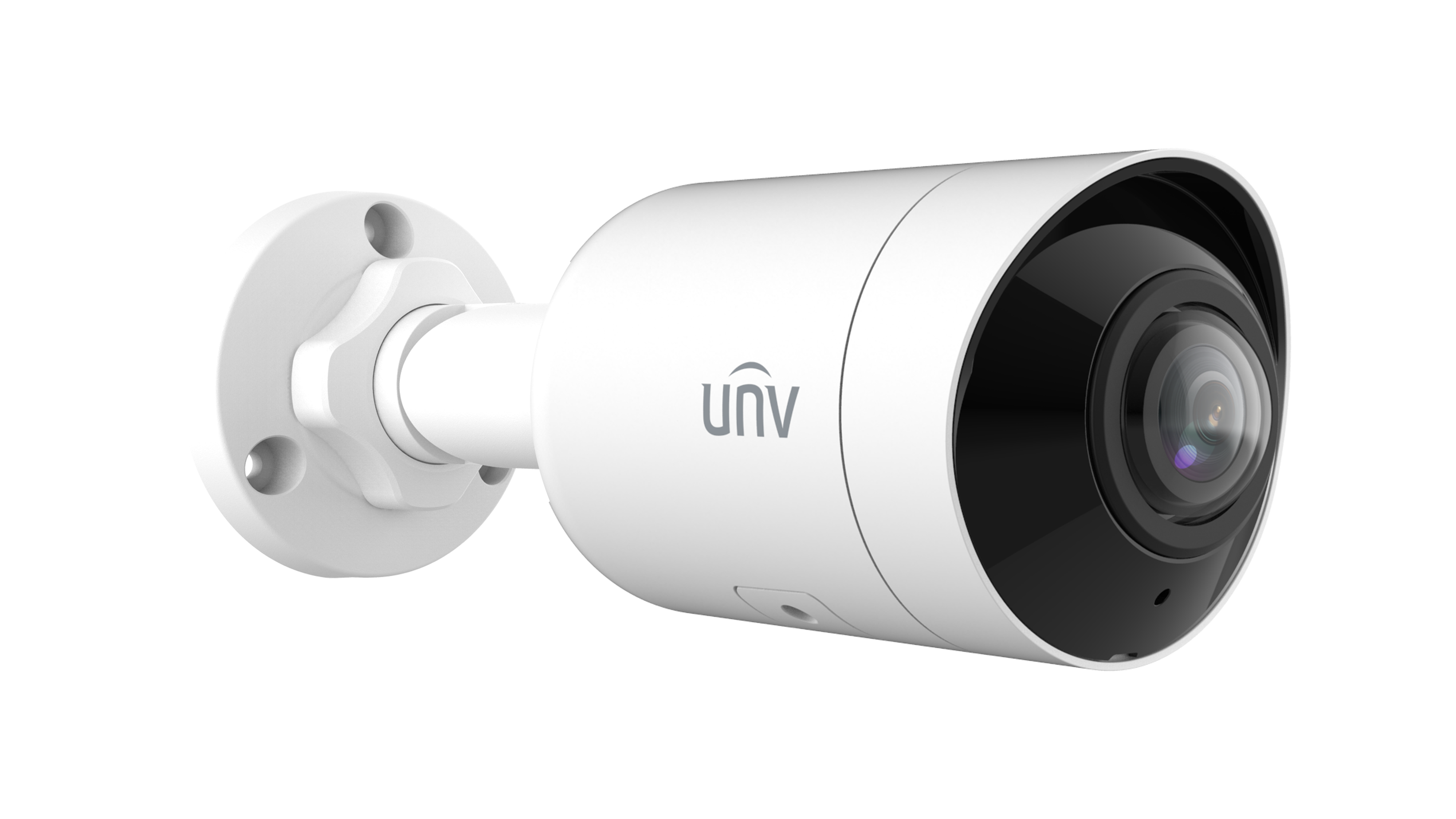

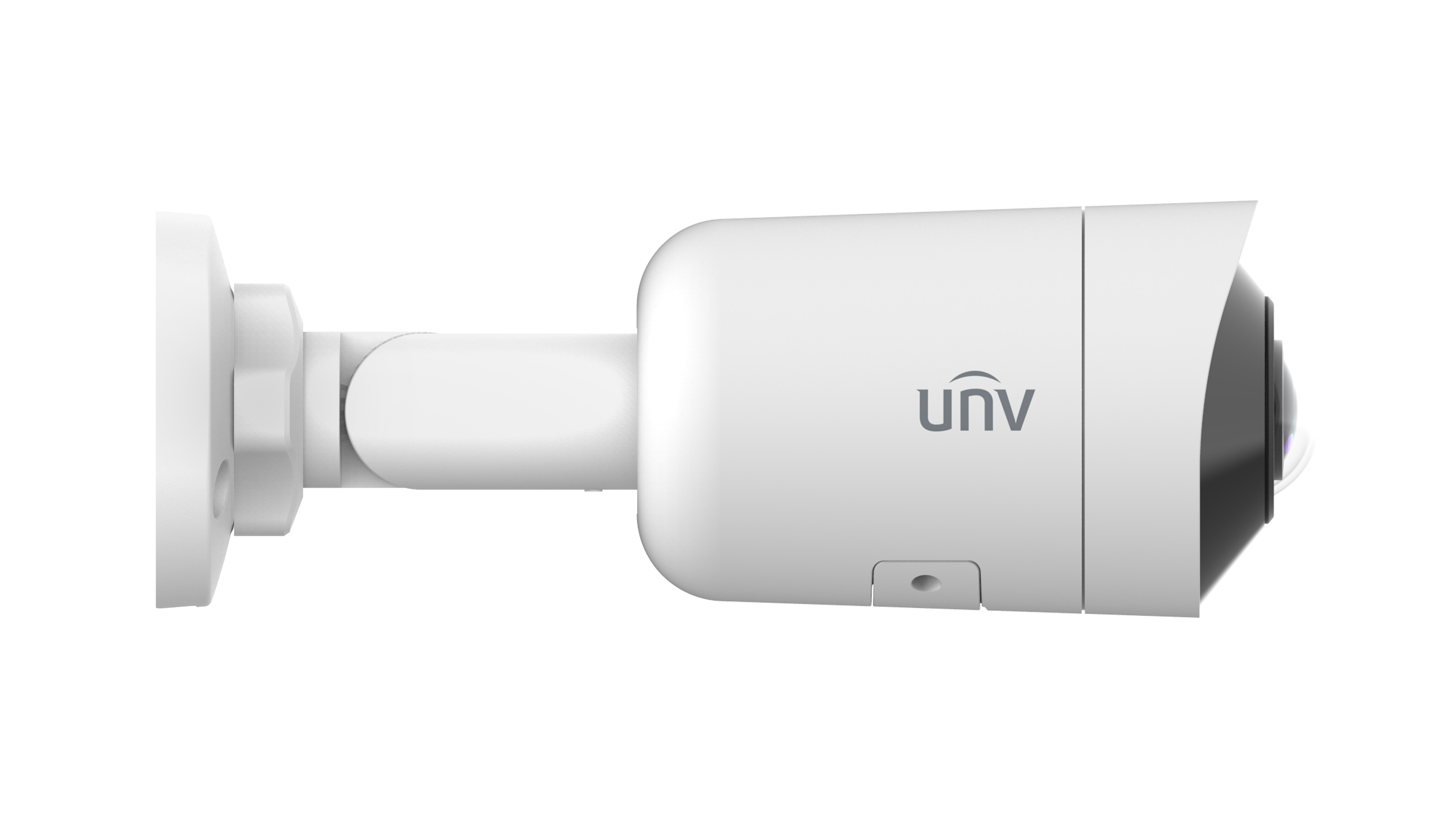

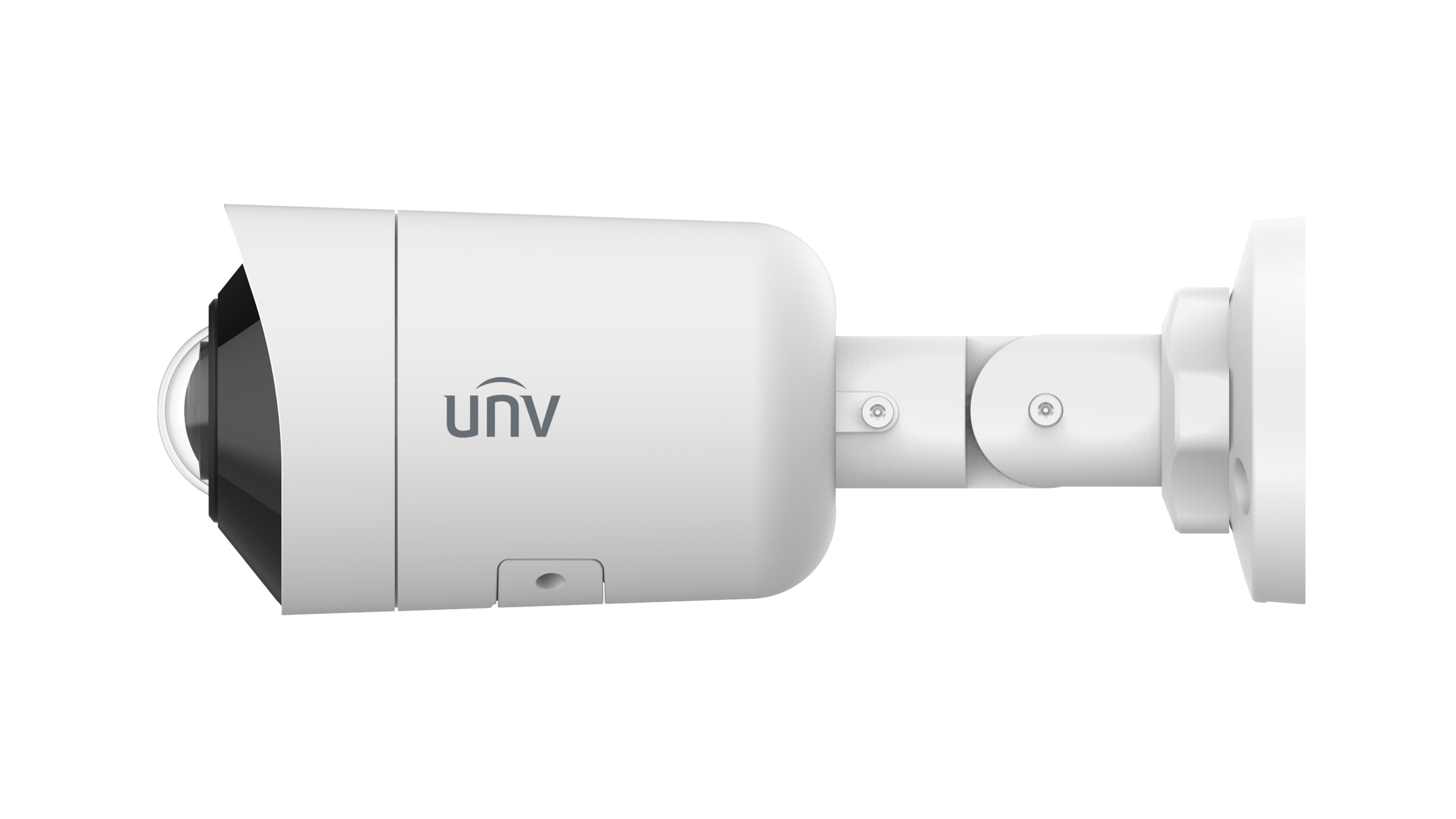

Видеокамера IPC2105SB-ADF16KM-I0

IPC2105SB-ADF16KM-I0

Camera

Sensor: 1/2.7", 5.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.01lux (F2.0, AGC ON)

0 lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment angle: Pan: 0° ~ 360° · Tilt: 0° ~ 90° · Rotate: 0° ~ 360°

WDR: 120dB

S/N: >56dB

Lens

Lens type: 1.68mm@F2.0

Iris: Fixed

Field of View (H): 180°

Field of View (V): 100°

Field of View (O): 180°

DORI

DORI Distance: Lens (mm) · Detect (m) · Observe (m) · Recognize (m) · Identify (m)

1.68: 37.8(124.0ft) · 15.1(49.6ft) · 7.6(24.8ft) · 3.8(12.4ft)

Illuminator

IR Range: Up to 20m (66ft) IR range

Wavelength: 850nm

IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 1280*720 Max 30fps

Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate: 128 Kbps~16 Mbps

U-code: Support

OSD: Up to 8 OSDs

Privacy Mask: Up to 4 areas

ROI: Up to 8 areas

Video Stream: Triple streams


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal/ Flip Vertical/ Flip Horizontal/180°

Dewarping: Support

HLC: Support

BLC: Support

Defog: Digital Defog

Intelligent

Smart intrusion prevention: Support false alarm filtering: Line crossing detection, Intrusion detection, Enter Area detection, Leave Area detection

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function: Watermark, IP address filtering, Tampering alarm, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way audio: N/A

Suppression: Support

Sampling Rate: 8KHZ

Storage

Edge Storage: Micro SD, up to 256GB

Network Storage: ANR, NAS(NFS)

Network

Protocols: IPv4,IPv6, IGMP,, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration: ONVIF (Profile S, Profile T, Profile G), API,SDK

User/Host: Up to 32 users. 3 user levels: administrator, common user and operator

Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2 , WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 RJ45 10M/100M Base-TX Ethernet

Video Output: N/A

Certifications

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

CB (IEC 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)

General

Power: DC 12V 25%, PoE (IEEE 802.3af)

Power consumption: Max 5.5W

Power Interface: 5.5mm coaxial power plug

Dimensions (L W H): 198 71 71mm (7.8 2.8 2.8 )

Weight: 0.42kg (0.93lb)

Material: Metal

Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: 95% RH (non-condensing)

Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: 95% RH (non-condensing)

Surge Protection: 4KV

Reset Button: Support
