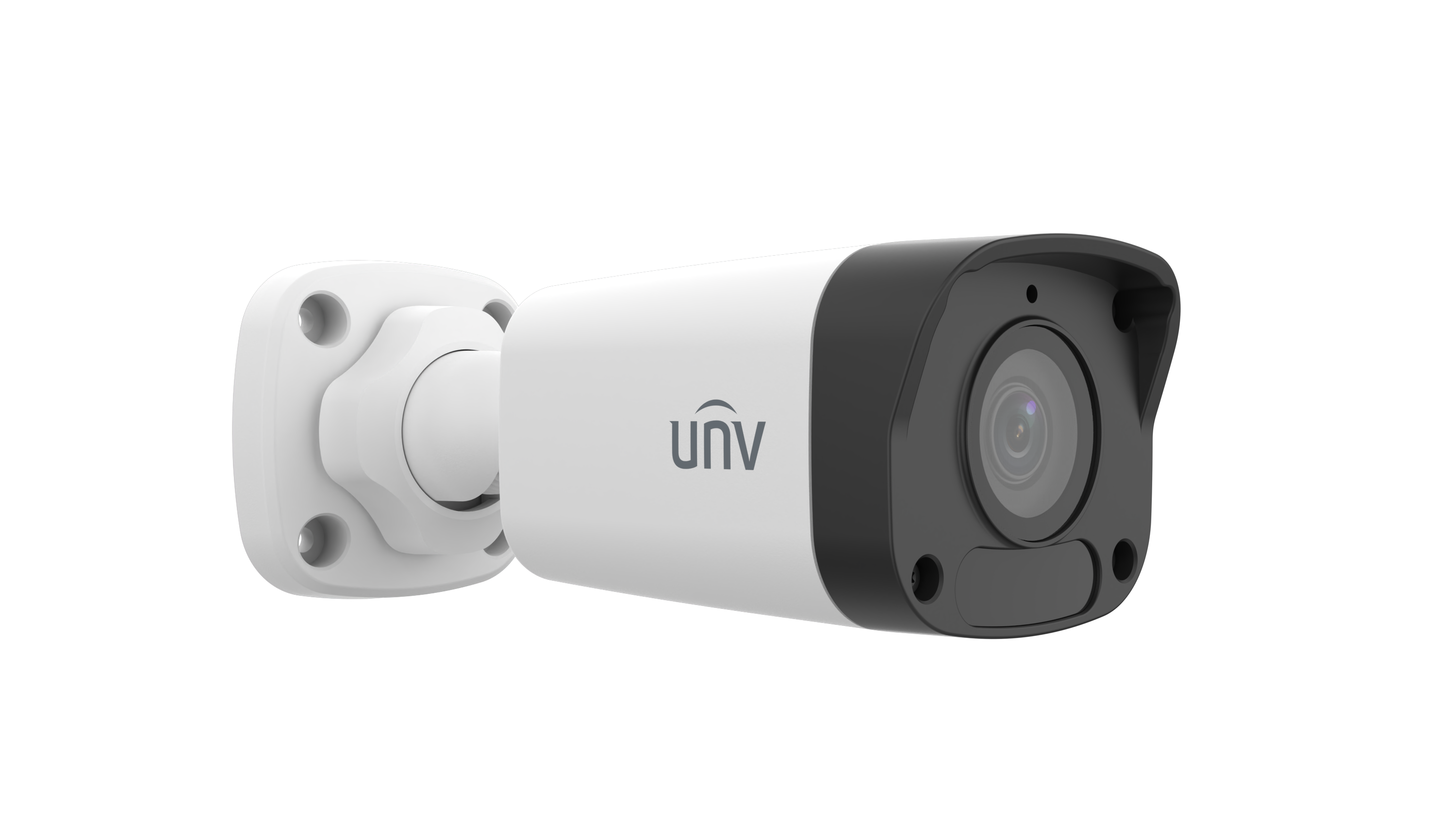

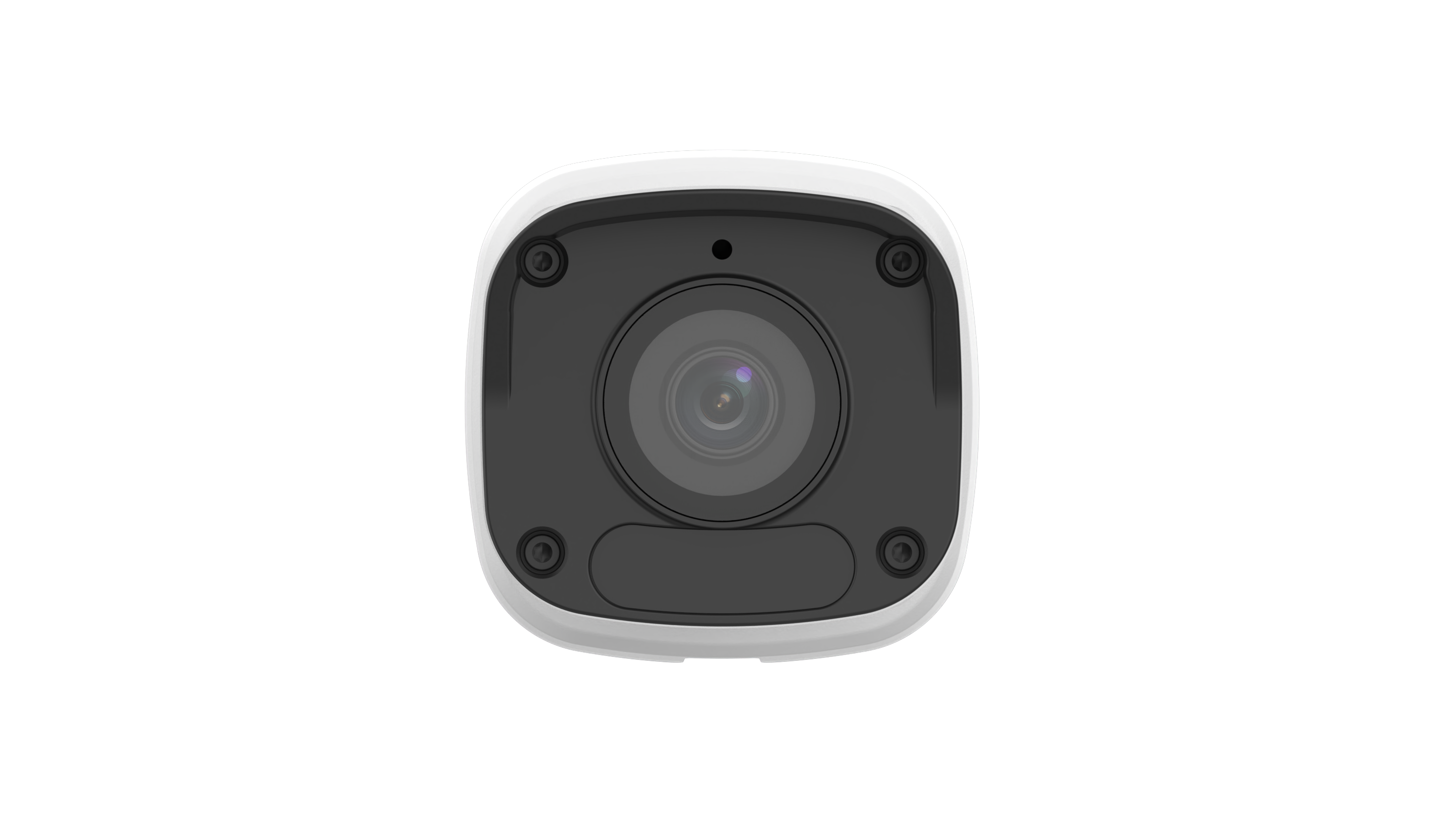

Уличная IP видеокамера IPC2122LB-AF28-A2

IPC2122LB-AF28-A2: IPC2122LB-AF40-A2

Camera

Max Resolution: 2 MP

Sensor: 1/3.0" CMOS

Min. Illumination: Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N: >52 dB

WDR: DWDR

Lens

Focal Length: 2.8 mm · 4.0 mm

Iris Type: Fixed

Iris: F2.0

Field of View (H): 99.5° · 77.1°

Field of View (V): 56.5° · 42.8°

Field of View (D): 114.4° · 88.2°

Lens Type: Fixed

DORI

DORI Distance (Lens): 2.8 mm · 4 mm

DORI Distance (Detect): 46.7 m (153.1 ft.) · 66.7 m (218.8 ft.)

DORI Distance (Observe): 18.7 m (61.4 ft.) · 26.7 m (87.6 ft.)

DORI Distance (Recognize): 9.3 m (30.6 ft.) · 13.3 m (43.7 ft.)

DORI Distance (Identify): 4.7 m (15.4 ft.) · 6.7 m (22.0 ft.)

Illuminator

Supplemental Light: IR

Illumination Distance (IR): 30 m (98.4 ft)

Wavelength: 850 nm

IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920 1080), max. 30 fps; 720P (1280 720), max. 30 fps

Sub Stream: 640 360, max. 30 fps; 2CIF (704 288), max. 30 fps; CIF (352 288), max. 30 fps

Video Bit Rate: 128 Kbps to 6144 Kbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal, Flip vertical, Flip horizontal, 180°

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital defog

Image Stabilization: N/A

Events

Basic Detection: Human body detection 2.0, Motion detection, Audio detection

General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression: G.711U，G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Support

Sampling Rate: 8 kHz

Storage

Edge Storage: N/A

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, QoS

Compatible Integration

ONVIF (Profile S, Profile T) ,

API, SDK

User/Host: Up to 32 users, 2 user levels: administrator and common user

Security: Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 RJ45 10 M/100 M Base-TX Ethernet

Video Output: N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety: CE LVD (EN 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU) 2015/863) , WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)

General

Power: DC 12 V 25%, PoE (IEEE 802.3af)

Power Consumption: Max. 3.9 W

Power Interface: 5.5 mm coaxial power plug

Dimensions: 157.5 mm 62.5 mm 62.7 mm (6.2" 2.5" 2.5") (L W H)

Weight: 0.19 kg (0.42 lb)

Material: Graphene + Plastic

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Surge Protection: 4 KV

Reset Button: N/A

Web Client Language: 1 Language: English
