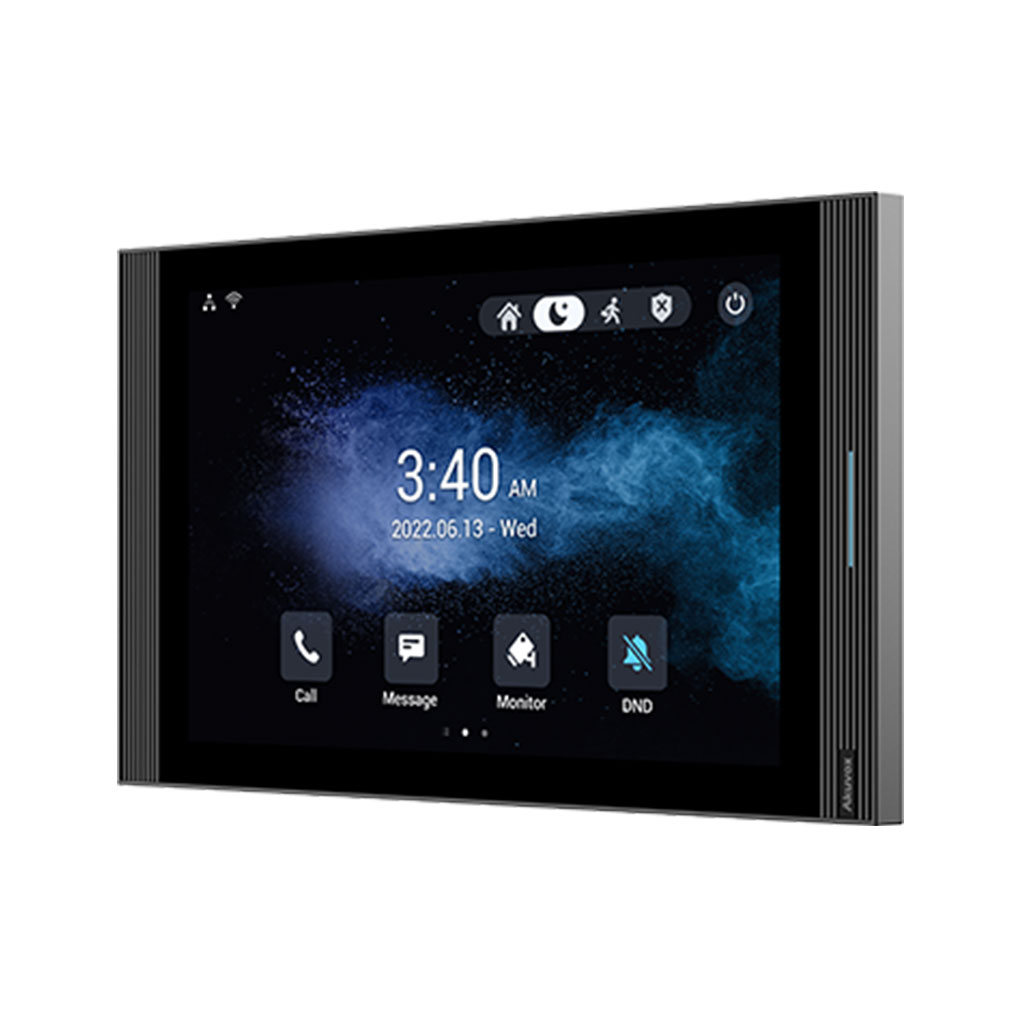

IP монитор (интерком-панель) S567W

Physical & Power

Front panel: Plastic

RAM / ROM: 2GB / 8GB

Display: 10 Inch IPS LCD

Screen: 10 Inch capacitive touch screen

RS485 Port: Support

Relays Out: 1

Bell in: 1

Alarm Input：8

Microphone: Dual microphones,-26dB

Speaker: Quad speakers, 8Ω / 2W

Ethernet Ports: 1xRJ45, 10/100Mbps adaptive

802.3af Power-over-Ethernet

12V DC Connector (if not using PoE)

Tamper Resistant: Support

Installation: Wall-mounted & Desktop

Dimension: 278x165.1x22.8 mm

Working Humidity: 10~90%

Working Temperature: -10°C ~ +45°C

Storage Temperature: -20°C ~ +70°C

Touch Screen Display

Display Mode: Normally black, Transmissive

LCD Size: 10inch (Diagonal)

Aspect Ratio: 16:10

Resolution: 1280x800

Contrast ratio: 900:1

Luminance: 290 cd/m²

Viewing Angle: 80° Left, 80° Right,

80° Upper, 80° Lower

Touch Screen: Projected capacitive

Audio

SIP v1 (RFC2543), SIP v2 (RFC3261)

Narrowband audio codec: G.711a, G.711μ, G.729

Broadband audio codec: G.722

DTMF: In-band, out-of-band DTMF (RFC2833), SIP Info

Echo Cancellation

Voice Activation Detection

Comfort Noise Generator

Automatic Gain Control

Video

Streaming formats: H.263 & H.264

Networking

Protocols support: IPv4, IPv6, HTTP, HTTPS, FTP, TFTP, SNMP, DNS, SNTP, RTSP, SRTP, RTP, TCP, UDP, TLS, ICMP, DHCP, ARP

Deployment & Maintenance

Auto-Provisioning

Web management portal

Web-based packet dump

Configuration backup / restore

Firmware upgrade

System logs (include door access logs)

Voice Assistant

Voice pickup distance up to 5 meters

Voice recognition accuracy up to 95%

Privacy protection with native voice data

Support English

Application Scenario

Villas

Apartment complexes

Home automation systems

Modern interiors
