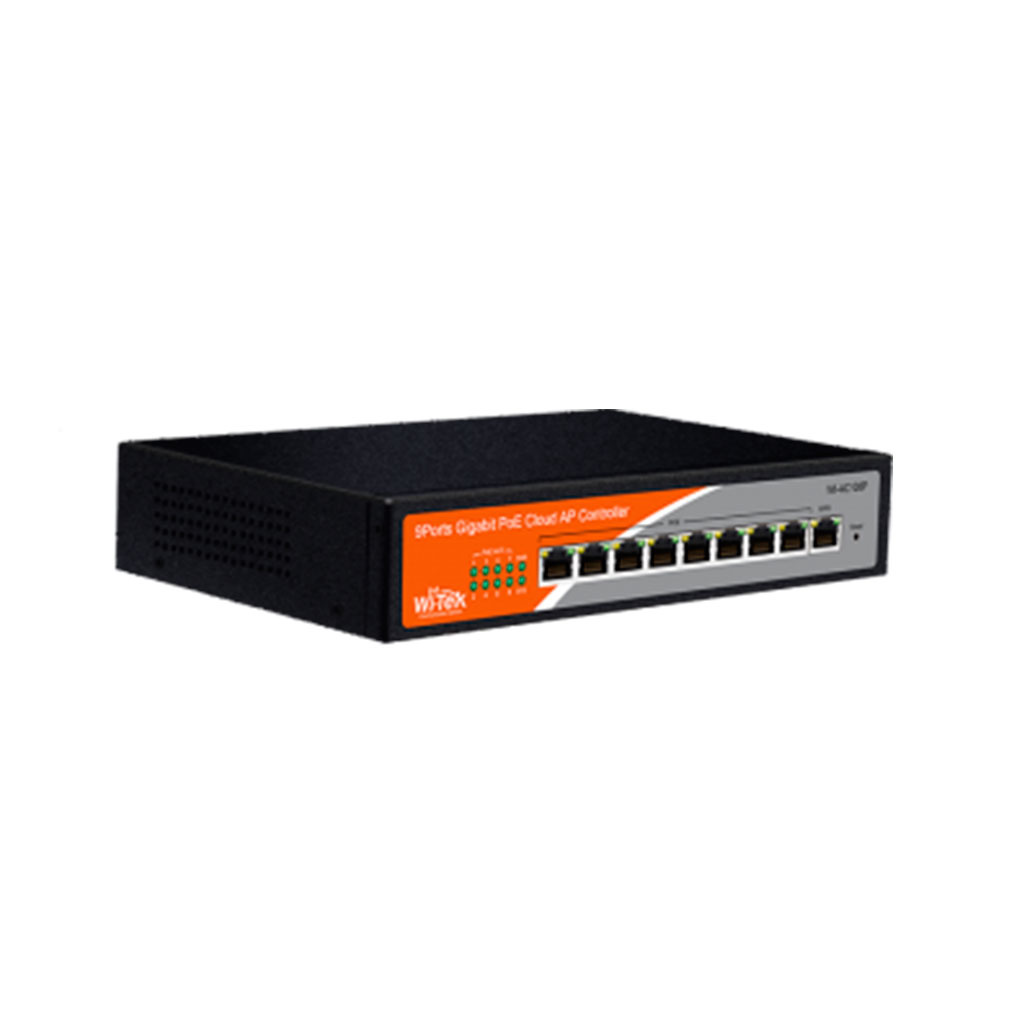

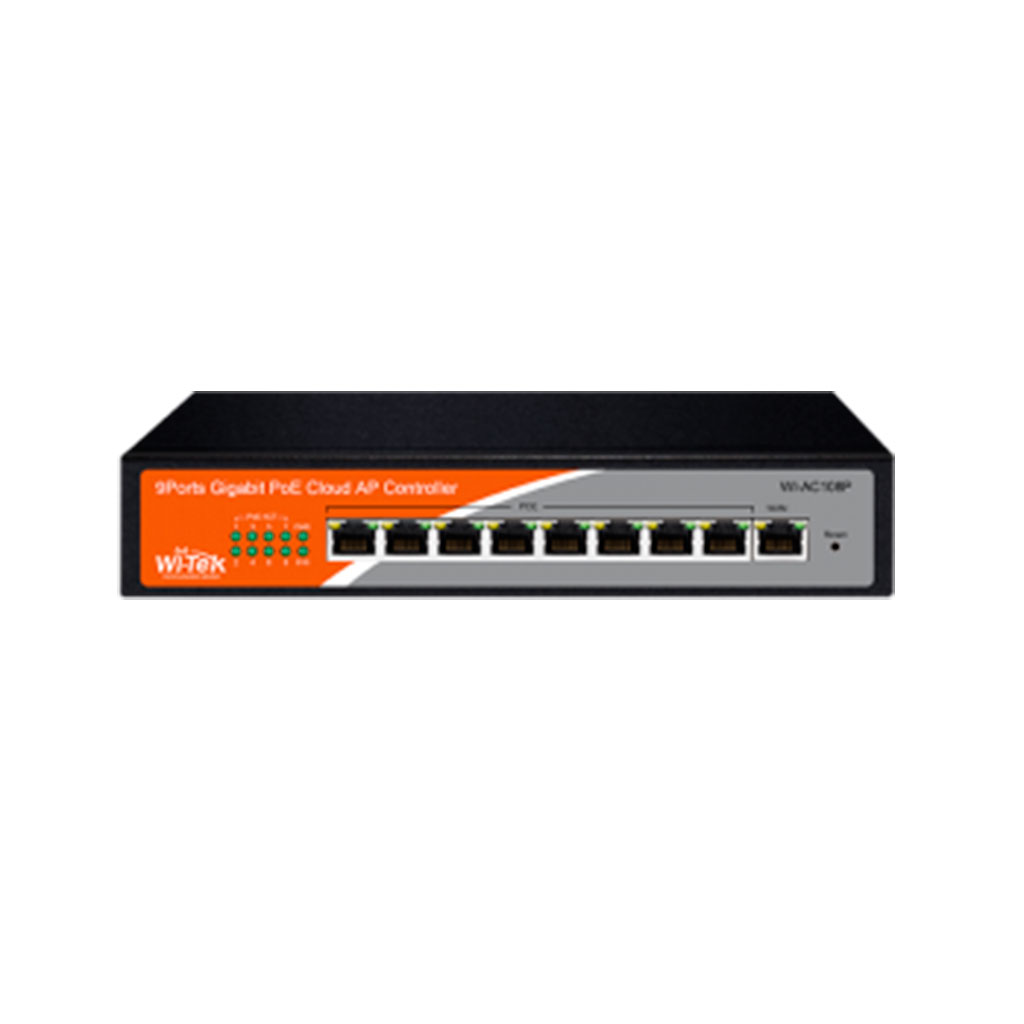

Аппаратный контроллер WI-AC108P

Hardware Specifications

Interface

9*10/100/1000M Base-T Ethernet ports,

(Default: 1 WAN port, 8 LAN ports)

PoE Out

802.3af/at*8

RAM

256MB

Flash

16MB

AP Unified Configuration

64APs

Recommended bandwidth

Up to 500M

Power supply

AC:100-240V

Power consumption

150W (With PoE load)

Dimensions

230mm * 150mm * 45mm

Environment

Temperature: -20°C ~ +50°C (working), -40°C ~ +70°C (storage) Humidity (non-condensing): 5% to 90% (working), 5% to 95% (storage)

Software Features

Network Access

PPPoE dial-up, DHCP client, static IP

Routing

Static routing, policy-based routing, carrier address routing, active/standby mode, load balancing based on source address, flow-based load balancing, port-based weighted load balancing of data streams

Security

ACL, DHCP static assignment, MAC address filtering dynamic ARP, static ARP binding, NAT, port mapping

Other protocols

DHCP Server, DHCP Client, DHCP Option43/138, DNS Server, DDNS

Application recognition

Support WAN Load Balancing

Supports the Onvif protocol

Support 802.1Q VLAN TAG

Support SD-LAN

Flow control

Support custom flow control polices, IP-based automatic bandwidth assignment

Traffic audit

Real-time traffic audit, IP Traffic visualization

Authentication

Captive portal: One Key Auth,Pre-Shared Password Local User Auth,Voucher,Facebook,SMS Auth,RADIUS Auth, Summary for Captive Portal

VPN

Open VPN /PPTP/L2TP / IPsec

Behavior management

Time-based and IP policy-based access control, website filtering

AP management

Support Auto AP Discovery, RF optimization, Batch configuration, Overview View, Multi-SSID configuration, SSID hiding, channel setting, Tx power setting, AP online upgrade, STA blacklist and whitelist

Management

Support local management with web Support remote management with Wi-Tek Cloud platform
