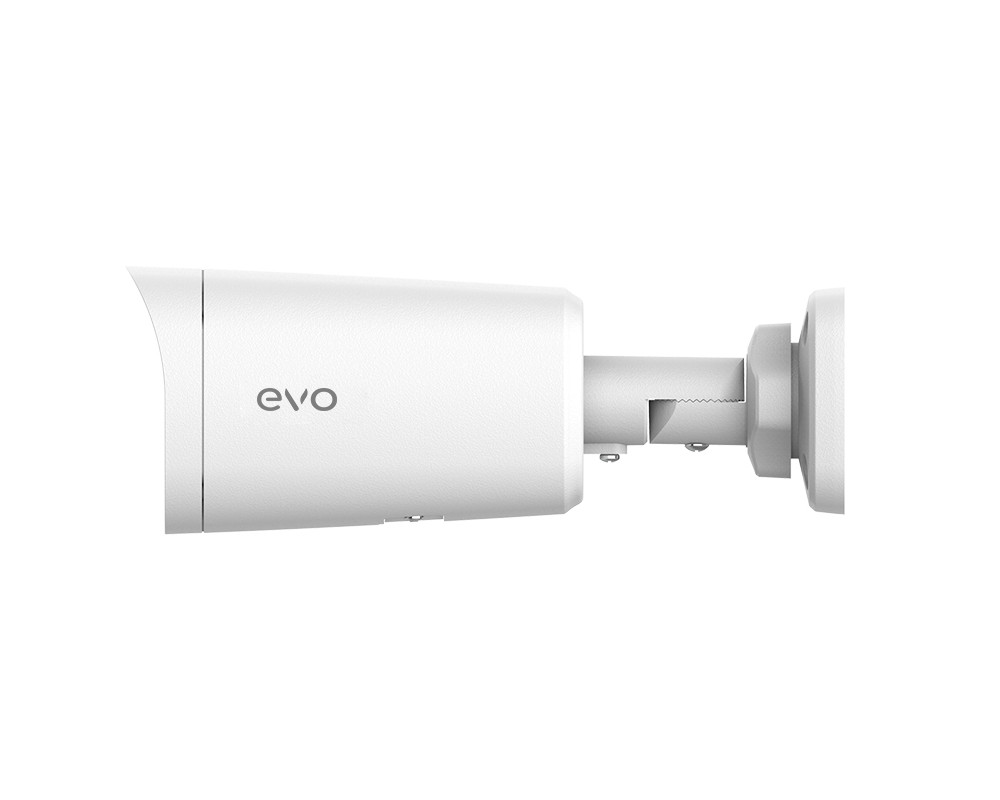

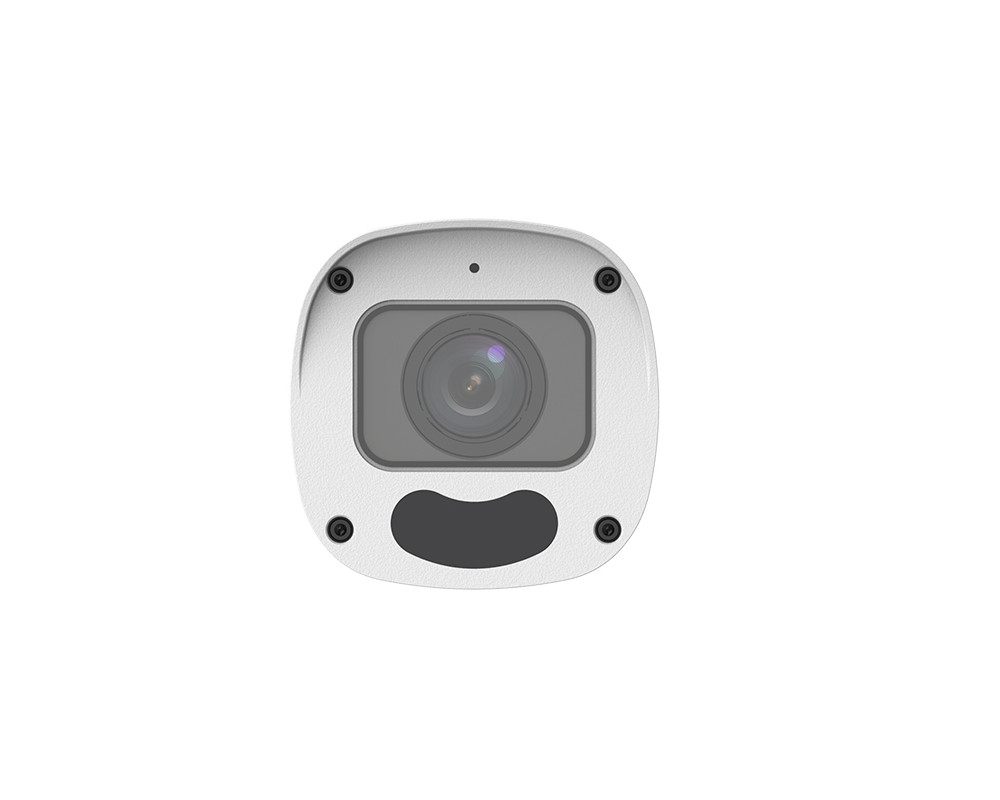

Уличная IP видеокамера IPC-2322-APKZ

IPC-2322-APKZ

Camera

Sensor: 1/2.7", 2.0 megapixel, progressive scan, CMOS

Minimum Illumination

Colour: 0.005Lux (F1.8, AGC ON)

0Lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment angle: Pan: 0° ~ 360° · Tilt: 0° ~ 90° · Rotate: 0° ~ 360°

WDR: 120dB

S/N: >52dB

Lens

Lens Type: 2.8 ~ 12mm, AF automatic focusing and motorized zoom lens

Iris: Fixed

Angle of View (H): 108.05°~ 32.59°

Angle of View (V): 56.81°~ 18.36°

Angle of View (O): 111.91°~36.53°

DORI

DORI Distance: Lens (mm) · Detect (m) · Observe (m) · Recognize (m) · Identify (m)

2.8: 42 · 16.8 · 8.4 · 4.2

12: 180 · 72 · 36 · 18

Illuminator

IR Range: Up to 50m (164ft) IR range

Wavelength: 850nm

IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate: 128 Kbps~6 Mbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Up to 8 areas

Motion Detection: Up to 4 areas

Video stream: Dual streams


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital Defog

Events

Basic Detection: Motion detection, Tampering alarm, Audio detection

General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Support

Sampling Rate: 8KHZ

Storage

Edge Storage: Micro SD, up to 256 GB

Network Storage: ANR,NAS(NFS)

Network

Protocols: IPv4, IGMP, ICMP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, QoS , RTMP, SNMP

Compatible Integration: ONVIF (Profile S, Profile T, Profile G), API

User/Host: Up to 32 users. 2 user levels: administrator and common user

Client

Uniarch Client

Uniarch APP

Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O: N/A

Alarm I/O: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 * RJ45 10M/100M Base-TX Ethernet

Video Output: N/A

Certifications

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

CB (IEC 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection

Ingression protection: IP67

Vandal resistant: IK10

General

Power: DC 12V±25%, PoE (IEEE 802.3af)

Power consumption: Max 7.5W

Dimensions (L × W × H): 198 × 74 × 74mm (7.8” × 2.9” × 2.9”)

Weight: 0.51kg (1.12lb)

Working Environment: -40℃~60℃(-40°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Storage Environment: -40℃~60℃(-40°F ~ 140°F)，Humidity: ≤95% RH (non-condensing)

Surge Protection: 6KV

Reset Button: Support
