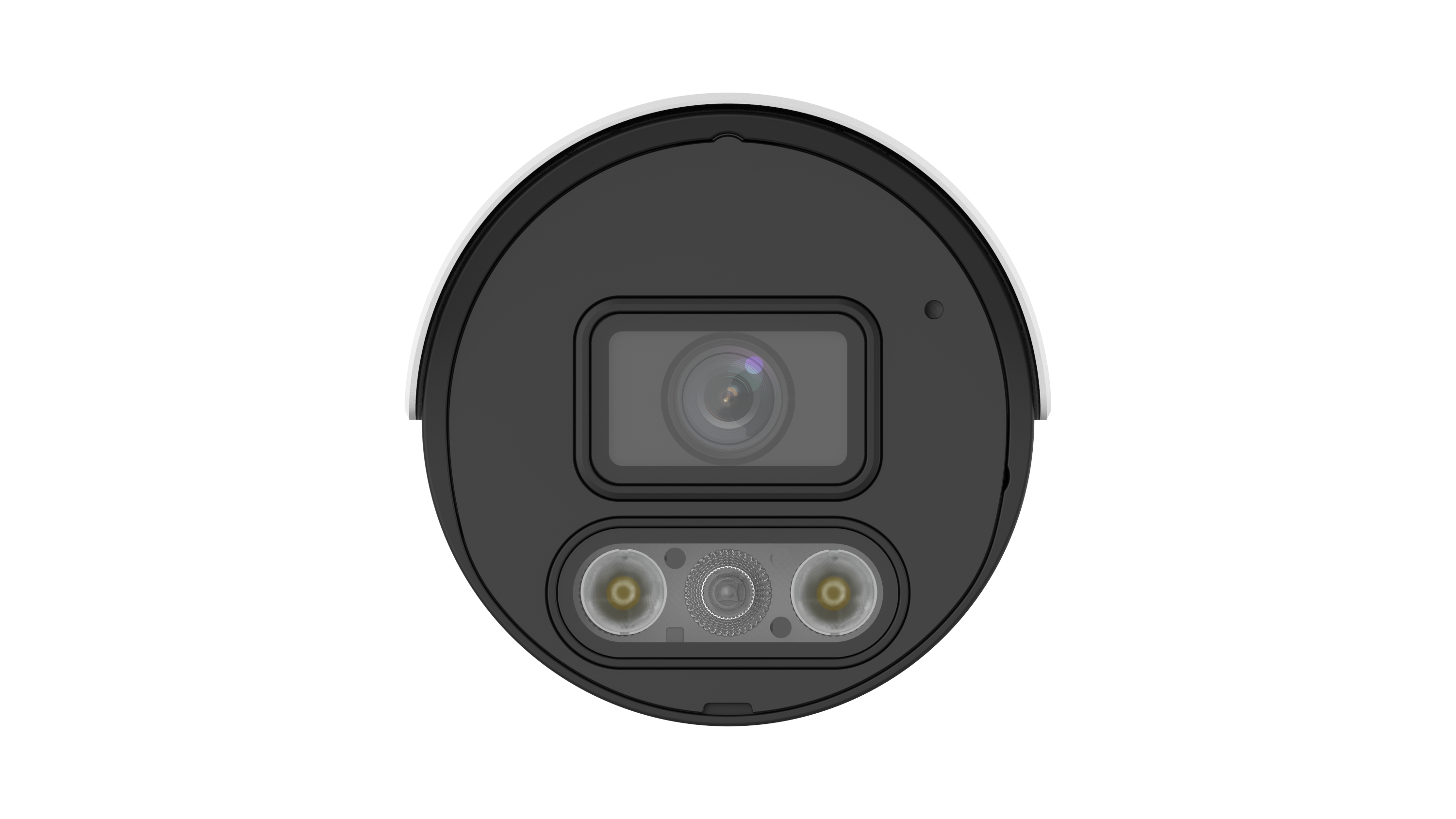

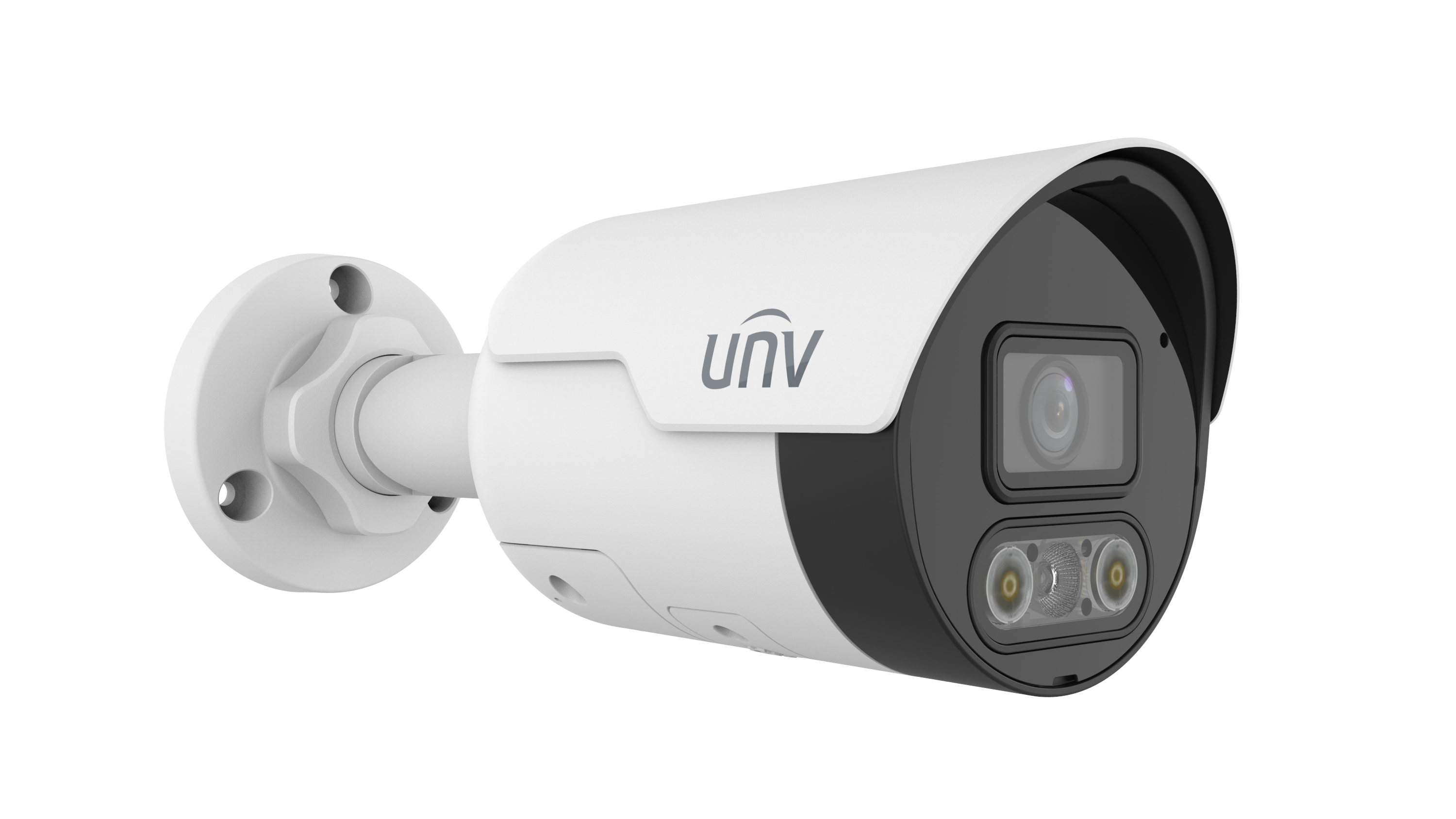

Уличная IP видеокамера IPC2124LE-ADF28KMC-DL

IPC2124LE-ADF28KMC-DL: IPC2124LE-ADF40KMC-DL

Camera

Max Resolution: 4 MP

Sensor: 1/3.0" CMOS

Min. Illumination: Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with light

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°

S/N: >52 dB

WDR: 120 dB

Lens

Focal Length: 2.8 mm · 4.0 mm

Iris Type: Fixed

Iris: F1.6

Field of View (H): 97.0° · 79.0°

Field of View (V): 52.2° · 42.3°

Field of View (D): 107.5° · 85.1°

DORI

DORI Distance (Lens): 2.8 mm · 4 mm

DORI Distance (Detect): 63.0 m (206.7 ft.) · 90.0 m (295.3 ft.)

DORI Distance (Observe): 25.2 m (82.7 ft.) · 36.0 m (118.1 ft.)

DORI Distance (Recognize): 12.6 m (41.3 ft.) · 18.0 m (59.1 ft.)

DORI Distance (Identify): 6.3 m (20.7 ft.) · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light: Dual light

Illumination Distance (IR): 30 m (98.4 ft)

Illumination Distance (Warm Light): 30 m (98.4 ft)

Light On/Off Control: Auto/Manual

Wavelength: 850 nm

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4 MP (2688 1520), max. 25 fps; 4 MP (2560 1440), max. 25 fps; 3 MP (2304 1296), max. 30 fps; 1080P (1920 1080), max. 30 fps; 720P (1280 720), max. 30 fps;

Sub Stream: 720P (1280 720), max. 30 fps; D1 (720 576), max. 30 fps; 640 360, max. 30 fps

Video Bit Rate: 128 Kbps to 16 Mbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital defog

Events

Basic Detection: Cross line (based on human body detection), Intrusion (based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio detection

General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: Support

Suppression: Support

Sampling Rate: 8 kHz

Storage

Edge Storage: MicroSD, up to 512 GB

Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP, QoS

Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host: Up to 32 users. 3 user levels: administrator, common user and operator

Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: Support

WIFI: N/A

Network: 1 RJ45 10 M/100 M Base-TX Ethernet

Video Output: N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)

General

Power: DC 12 V 25%, PoE (IEEE 802.3af)

Power Consumption: Max. 9.0 W

Power Interface: 5.5 mm coaxial power plug

Dimensions: 192 mm 75 mm 74 mm (7.6" 2.9" 2.9") (L W H)

Weight: 0.40 kg (0.88 lb)

Material: Graphene + Metal

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Surge Protection: 4 KV

Reset Button: Support

Web Client Language: 4 Languages: English, Russian, Spanish, Vietnamese
