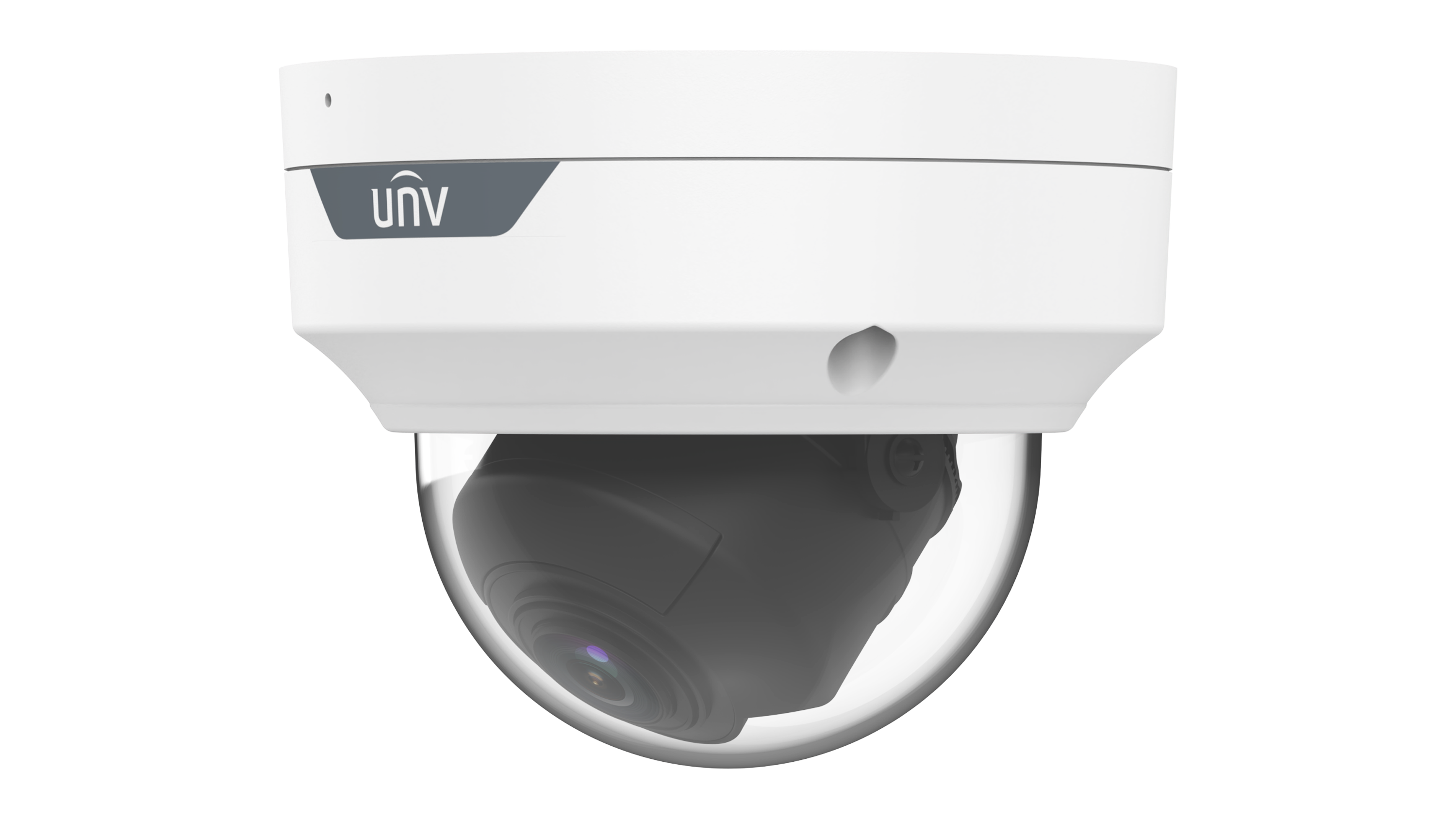

Купольная IP видеокамера IPC3532LB-ADZK-H

IPC3532LB-ADZK-H

Camera

Max Resolution: 2 MP

Sensor: 1/2.7" CMOS

Min. Illumination

Colour: 0.003 lux (F1.6, AGC ON)

0 lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 3° ~ 360°, Tilt: 0° ~ 70°, Rotate: 3° ~ 360°

S/N: >52 dB

WDR: 120 dB

Lens

Focal Length: 2.8 to 12 mm

Iris Type: Fixed

Iris: F1.6

Field of View (H): 103.6°~33.4°

Field of View (V): 54.8°~18.7°

Field of View (D): 107.9°~37.8°

DORI

DORI Distance (Lens): 2.8mm, 12mm

DORI Distance (Detect): 43.4m(142.5ft), 186.2m(610.9ft)

DORI Distance (Observe): 17.4m(57.0ft), 74.5m(244.4ft)

DORI Distance (Recognize): 8.7m(27.5ft), 37.2m(122.2ft)

DORI Distance (Identify): 4.3m(14.3ft), 18.6m(61.1ft)

Illuminator

Supplemental Light: IR

Illumination Distance (IR): 40 m (131.2 ft)

Wavelength: 850 nm

IR On/Off Control: Auto/Manual

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps

Video Bit Rate: 128 Kbps to 6144 Kbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Dual streams


White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital defog

Events

Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)

General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Support

Sampling Rate: 8 kHz

Storage

Edge Storage: Micro SD, up to 512 GB

Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP

Compatible Integration

ONVIF (Profile S, Profile G, Profile T),

API, SDK

User/Host: Up to 32 users, 2 user levels: administrator and common user

Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 RJ45 10 M/100 M Base-TX Ethernet

Video Output: N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

CB (IEC 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)

IK10 (IEC 62262)

General

Power: DC 12V 25%, PoE (IEEE 802.3af)

Power Consumption: Max 8.0W

Power Interface: 5.5 mm coaxial power plug

Dimensions: 128mmx100mm ( 5.0 x 3.9 ) ( x H)

Weight: 0.66kg(1.46lb)

Material: Metal + Plastic

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Surge Protection: 6 KV

Reset Button: Support

Web Client Language: 4 Languages: English, Russian, Spanish, Vietnamese
