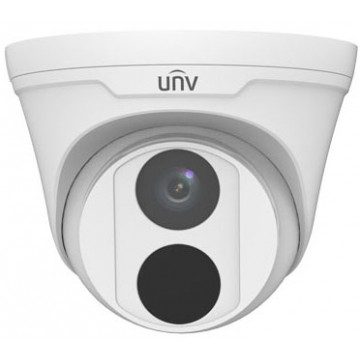

Купольная IP камера IPC3624LE-ADF28K-WP

IPC3624LE-ADF28K-WP: IPC3624LE-ADF40K-WP

Camera

Sensor: 1/1.8 , 4.0 megapixel, progressive scan, CMOS

Minimum Illumination: Colour: 0.0003lux (F1.0, AGC ON)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment angle: Pan: 0° ~ 360° · Tilt: 0° ~ 75° · Rotate: 0° ~ 360°

WDR: 120dB

S/N: >52dB

Lens

Lens: 2.8mm@F1.0 · 4.0mm@F1.0

Iris: Fixed

Field of View (H): 110.4° · 89.4°

Field of View (V): 60.5° · 48.2°

Field of View (D): 115.2° · 94.7°

DORI

DORI Distance: Lens (mm) · Detect（m） · Observe（m） · Recognize（m） · Identify（m）

2.8: 43.4(142.5ft) · 17.4(57.0ft) · 8.7(28.5ft) · 4.3(14.3ft)

4.0: 62.1(203.6ft) · 24.8(81.5ft) · 12.4(40.7ft) · 6.2(20.4ft)

Illuminator

Warm Light Range: Up to 30m (98ft)

Light On/Off Control: Auto/Manual

Video

Video Compression: Ultra265, H.265, H.264, MJPEG

H.264 code profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Video Bit Rate: 128 Kbps~6144Kbps

U-code: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Up to 8 areas

Video Stream: Dual streams


White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital noise reduction: 2D/3D DNR

Smart Illumination: Support

Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital Defog

Events

Basic Detection: Cross line, intrusion(based on human body detection), Motion detection, Ultra motion detection, Tampering alarm, Audio Detection

General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way audio: N/A

Suppression: Support

Sampling Rate: 8KHZ

Storage

Edge Storage: Micro SD, up to 256GB

Network Storage: ANR, NAS(NFS)

Network

Protocols: IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SNMP, 802.1x, QoS, RTMP,SSL/TLS

Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API,SDK

User/Host: Up to 32 users. 2 user levels: administrator and common user

Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client

EZStation

EZView

EZLive

Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 * RJ45 10M/100M Base-TX Ethernet

Video Output: N/A

Certifications

EMC

CE-EMC (EN 55032,EN 61000-3-3,EN IEC 61000-3-2,EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection: IP67 (IEC 60529)

General

Power: DC 12V 25%, PoE (IEEE 802.3af)

Power consumption: Max 2.8W

Power Interface: 5.5mm coaxial power plug

Dimensions ( x H): 118x106mm ( 4.6 x 4.2 )

Weight: 0.48kg(1.06lb)

Material: Metal + Plastic

Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: 95% RH (non-condensing)

Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: 95% RH (non-condensing)

surge protection: 4KV

Reset Button: Support
