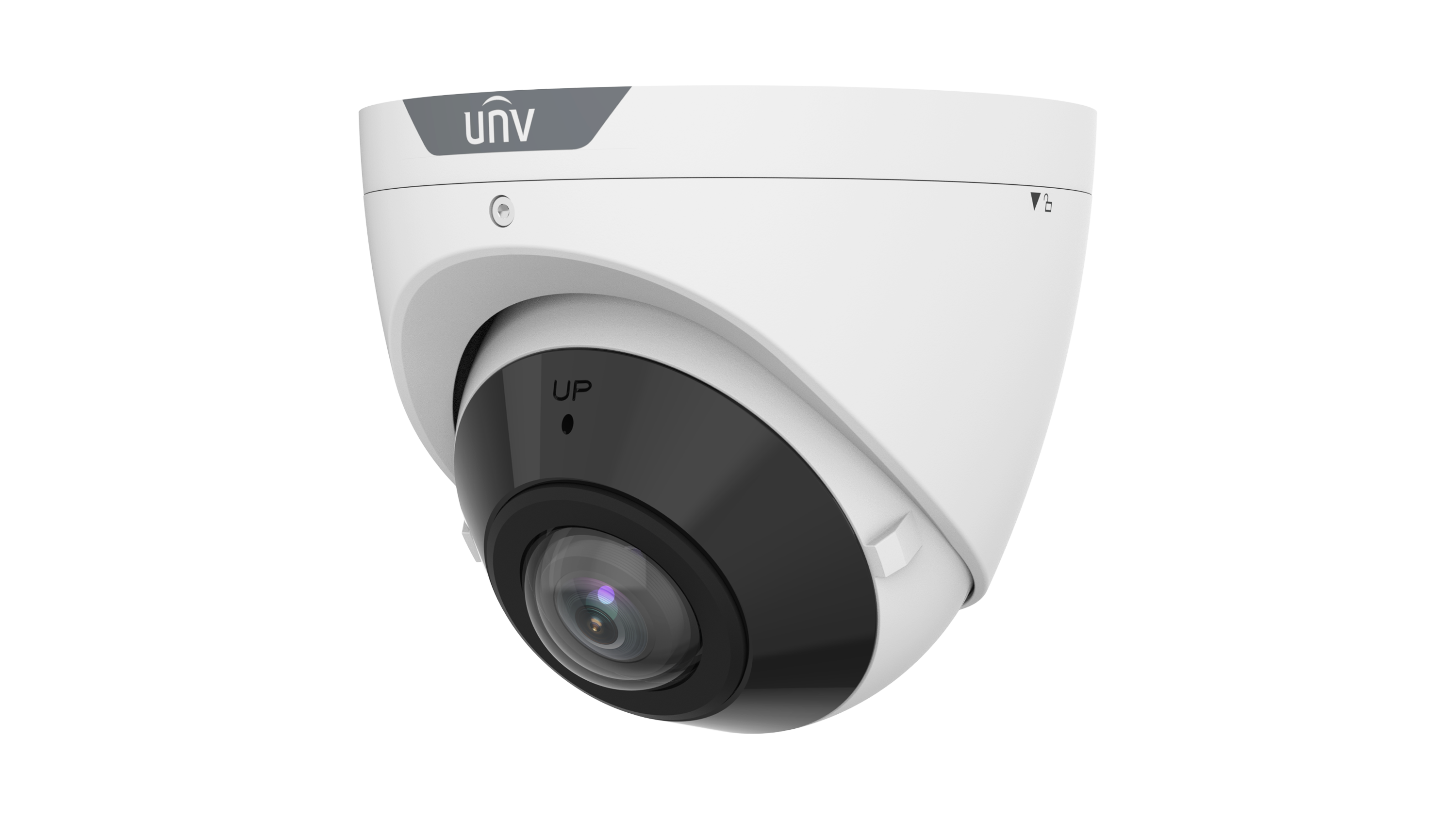

Купольная IP видеокамера IPC3608SB-ADF16KM-I0

IPC3608SB-ADF16KM-I0

Camera

Max Resolution: 8 MP

Sensor: 1/2.7" CMOS

Min. Illumination

Colour: 0.01 lux (F2.0, AGC ON)

0 lux with IR on

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment Angle: Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360°

S/N: >52 dB

WDR: 120 dB

Lens

Focal Length: 1.68 mm

Iris Type: Fixed

Iris: F2.0

Field of View (H): 180°

Field of View (V): 100°

Field of View (D): 180°

Lens Type: Fixed

DORI

DORI Distance (Lens): 1.68mm

DORI Distance (Detect): 37.8(124.0ft)

DORI Distance (Observe): 15.1(49.6ft)

DORI Distance (Recognize): 7.6(24.8ft)

DORI Distance (Identify): 3.8(12.4ft)

Illuminator

Supplemental Light: IR

Illumination Distance (IR): 20 m (65.6 ft)

IR On/Off Control: Auto/Manual

Wavelength: 850 nm

Video

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate

Main Stream: 8MP (3840*2160), Max 30fps;5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;

Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;

Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate: 128 Kbps to 16 Mbps

U-code: Support

OSD: Up to 8 OSDs

Privacy Mask: Up to 4 areas

ROI: Support

Video Stream: Triple Streams


White Balance: Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2

Digital Noise Reduction: 2D/3D DNR

Smart IR: Support

Auto Scene Match (ASM): Support (Only WDR)

Flip: Normal, Flip Vertical, Flip Horizontal, 180°

Dewarping: Support

HLC: Support

BLC: Support

Defog: Digital Defog

Image Stabilization: N/A

Low Illumination Characteristics: Low-light

Intelligent

Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)

Attribute Collection: SIP with color retrieval

Events

Basic Detection: Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind

General Function: Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication

Audio

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Support

Sampling Rate: 8 kHz

Storage

Edge Storage: Micro SD, up to 512 GB

Network Storage: ANR, NAS (NFS)

Network

Protocols: IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS

Compatible Integration

ONVIF (Profile S, Profile G, Profile T),

API, SDK

User/Host: Up to 32 users. 3 user levels: administrator, common user and operator

Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF

Client: UNV-Link, UNV-Link Pro, EZStation

Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 RJ45 10 M/100 M Base-TX Ethernet

Video Output: N/A

Certification

EMC

CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035)

FCC (FCC 47 CFR part15 B)

Safety

CE LVD (EN 62368-1)

UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)

Environment: CE-RoHS (2011/65/EU, (EU)2015/863), WEEE (2012/19/EU)

Protection

IP67 (IEC 60529)

IK10 (IEC 62262)

General

Power: DC 12V 25%, PoE (IEEE 802.3af)

Power Consumption: Max 5.5W

Power Interface: 5.5 mm coaxial power plug

Dimensions: 111 x 93mm ( 4.4 x 3.7 ) ( x H)

Weight: 0.48kg (1.06lb)

Material: Metal

Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: 95% RH (non-condensing)

Surge Protection: 4 KV

Reset Button: Support

Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
